2023  TYM Tractors  2515H

Call or Click for Quote

573.686.7299

Get in Touch

    Dealer Notes

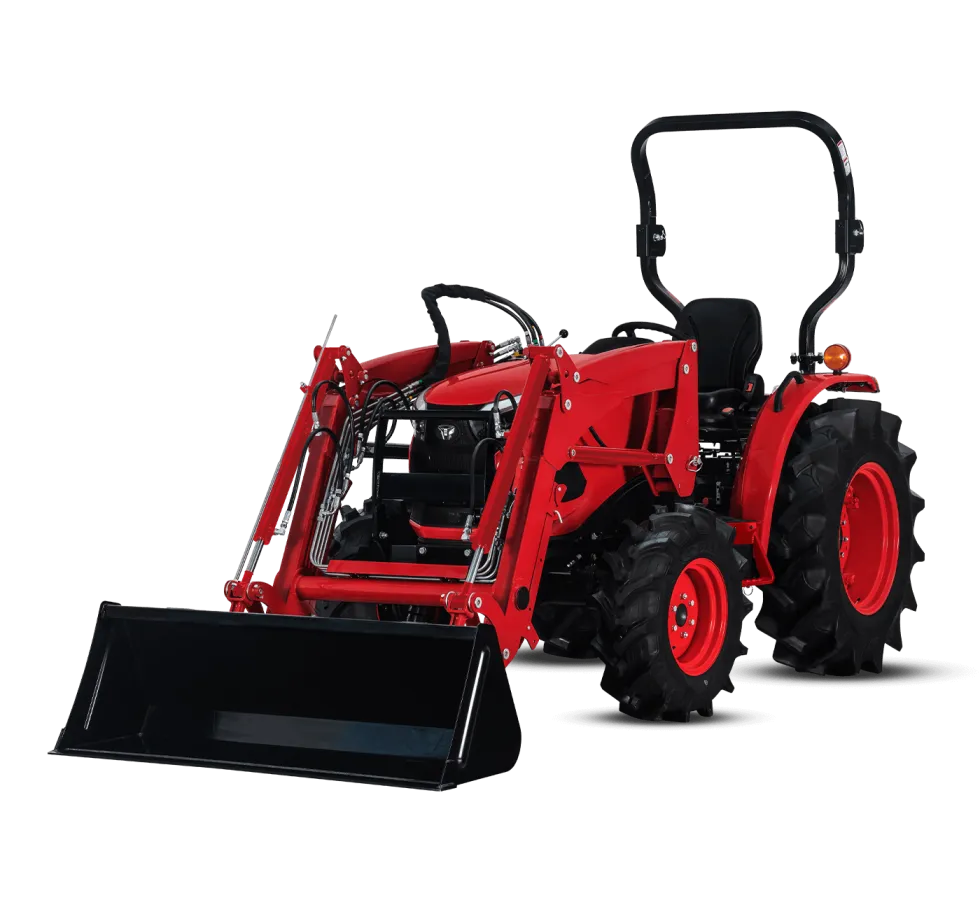

    The Branson TYM 2515H Tractor and Loader has More Lift and Power than any other tractor of comparable horse power in it’s class!

    Low Profile: The Branson 15 Series is only 104” tall at the top of the roll bar with 12” of ground clearance. This unit is very maneuverable in tight spaces.

    Hydrostatic Steering: There is no mechanical connection between the steering wheel and the power steering cylinder-it is all hydraulic. You will feel the difference in the smooth and easy turns.

    Easy Maintenance: Maintenance on the 15 Series tractors are easier than ever with its removable radiator screen and easy access engine compartment.

    Branson TYM 2515 Tractor:

    • 25 HP Clean EPA Tier 4  Diesel Engine
    • 4 WD
    • Category 1 – 3pt Hitch
    • PTO: Independent (19.4 hp)
    • Transmission: Hydro-Max HST / 3-Range
    • Hydrostatic Steering, Fingertip ease
    • Skid Steer Bucket Loader
    • Unbeatable lift capacity 2,200 lbs
    • Weight 3,014 lbs (One of the Heaviest Tractors in its class)
    • Spacious Ergonomically Designed Operators Platform
    • Deluxe Adjustable Seat (Arm rests optional).

    Specifications:
    GENERAL

    • Drive System: 4 Wheel Drive
    • Steering: Hydrostatic

    CLUTCH

    • Battery: 12V
    • Brake: Wet Multi Disc

    ENGINE

    • Model: A1700N6
    • Type: Vertical 4 Cycle, Water Cooled, Diesel

    COMBUSTION SYSTEM

    • Aspiration: Naturally
    • Horsepower: 25 @2600
    • RPMs: 2600
    • No. of Cylinders: 3
    • Bore x Stroke: 88 x 94mm
    • Displacement: 1714 cc
    • Fuel: Diesel

    CAPACITY

    • Fuel Tank: 7 gal

    DIMENSIONS

    • Overall Length: 121.88 in
    • Overall Width: 57.13 in
    • Height with ROPS: 104.06 in
    • Wheelbase: 65.79 in
    • Ground Clearance: 13.19 in
    • Weight: 3,014 lbs
    • Front Tread: 47.28
    • Rear Tread: 45.87

    TRANSMISSION TYPE

    • Hydro-Max HST / 3 Range

    PTO

    • Type: Independent
    • Speed: 560 RPM
    • Power: 19.4 hp
    • PTO shaft specification: 6 Spline Shaft

    HYDRAULIC SYSTEM

    • 3-point hitch: CAT. 1
    • Lift Capacity: 3306#
    • Position Lift Capacity @ 24” 2,420 lbs.

    DRIVING SYSTEM

    • Tire Front Wheel: 8.0-16 6PR
    • Tire Rear Wheel: 12.4-24 6PR

    STEERING SYSTEM

    • Fully hydraulic
    • Brake Driving: Wet Multi Disc
    • Brake / Parking: Foot Brake Lever Type

    BL150 LOADER
    Dig with Authority! Branson Loaders are designed with the operator in mind it’s easy and quick to attach and detach them from the tractor.
    No need to struggle hooking up an auxiliary hydraulic pump. Loaders are powered by the tractors’ hydraulics.

    Specifications

    • Skid Steer
    • Bucket Width 62″ Actual  (Misprint in Brochure )
    • (Optional Bucket Cutting Edge available at additional cost)
    • Maximum Lift Height: 104 in
    • Clearance with Attachment Level: 95 in
    • Clearance with Attachment Dumped: 78.2 in
    • Reach at Maximum Height: 20.4 in
    • Reach with Attachment on Ground: 70.5 in
    • Maximum Dump Angle: 46 degrees
    • Attachment Rollback Angle: 35 degrees
    • Digging Depth Below Grade: 1.8 in
    • Overall Height in Carry Position: 52.4 in
    • Depth of Attachment (to back of inner shelf): 20.9 in
    • Height of Attachment: 20.9 in
    • Depth of Attachment (to pivot pin): 27.2 in
    • Lift Capacity to Full Height @ Pivot Pins: 2200 lbs
    • Breakout Force: 3660 lbs
    • Lift Cylinders: 2.2 x 1.2 in
    • Bucket Cylinder: 2.0 x 1.2 in

    Info

    Industry

    Agriculture

    Make

    TYM Tractors

    Model

    2515H

    Trim

    Base

    Year

    2023

    Category

    Tractors

    Subcategory

    Tractors

    Condition

    New
