2023  TYM Tractors  3515H

The Branson TYM 3515H with Front End Loader is one of the 15 series tractors that is ready for any job. Whatever small job you have around the farm, the Branson TYM 15 Series tractors are perfect.

The Hydro Max Transmissions are standard on all 15 series HST models. You no longer have to pre-set an engine throttle position. The engine RPM automatically increases or decreases as you move the forward/reverse foot pedals. Hydro-Max is quiet, smooth, easy and eco-smart. This transmission allows for maximum torque, efficiency and reliability.

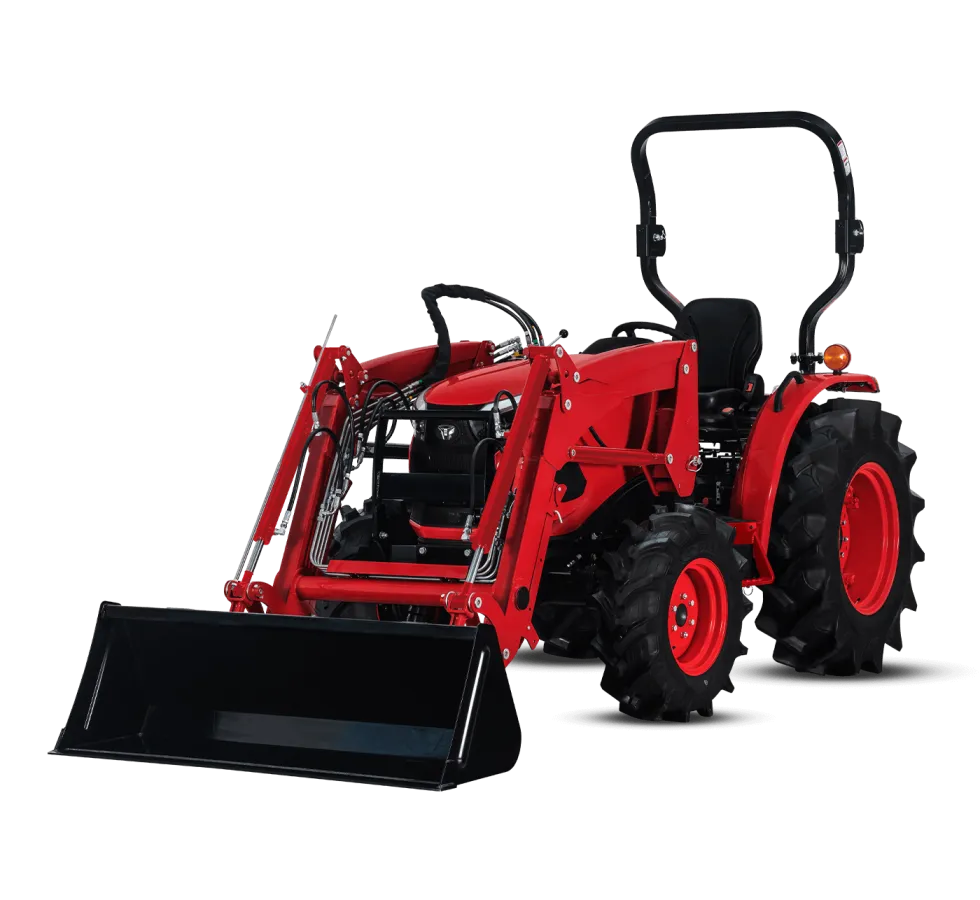

The Branson TYM 3515H Tractor with the BL150 Front End Loader features a Category 1 three-point hitch, as well as a pin-type 3-point hitch stabilizer.

The tractor is easy “Attach and Go” which certainly makes life easier while attaching their options for a front-end loader, backhoe and a skid-steer loader.

The BL150 Loader features a built-in bucket level indicator that eliminates guess work, while making the job easier.

Specifications for the Branson 3515H Tractor

General

• Drive System 4 Wheel Drive
• Steering Hydrostatic
• Clutch Dry Single Plate
• Battery 12V
• Brake Wet Disc

Engine

• Model A1700N4
• Type Vertical, 4 Cycle, Water Cooled, Diesel
• Combustion System Swirl Chamber
• Aspiration Natural
• HP 35
• RPMs 2600
• No. of Cylinders 3
• Bore x Stroke 88 X 94 mm (3.46″ x 3.7″)
• Displacement 1714 cc
• Compression Ratio 21.3:1
• Air Cleaner Type Dry, Element
• Fuel Capacity 7 gal

Tires

• Front Tread 7 x 6 (AG10), 28 x 8.50 -15 (IND10)
• Rear Tread 12.4 x 28 (AG10), 43 x 16-20 (IND10)

Dimensions

• Overall Length 121.9 in.
• Overall Width 57 in.
• Height with ROPS 104.06 in.
• Wheelbase 65.79 in.
• Ground Clearance 12.05 in.
• Weight 3014 lbs

Transmission

• Type Hydro Max
• Gear Shifting (F&R) HST x 3 Range
• Travel Speed (F&R) 14.8 mph

PTO

• Type 540 / 780 (540E)
• Speed Independent PTO (6 Spline Shaft)
• Power 30 hp

Hydraulic System

• Type Position Control
• 3-Point Hitch Category 1
• Lift Capacity On ball ends- (3306 lbs) at 24″ (2420 lbs)
• Steering Pump Flow 4.7 gpm @ 2600 rpm
• Main Pump Flow 8.7 gpm @ 2600 rpm

 FRONT END LOADER (BL150)

• Max Lift Height 104″
• Depth of attachment(to back of inner shell) 20.9″
• Clearance w/ Attachment level 95″
• Height of attachment 20.9″
• Clearance w/ Attachment Dumped  78.2″
• Depth of attachment (to Pivot pin) 27.2″
• Max Reach Height 20.4″
• Lift capacity to full height @ Pivot Pin 2200#
• Max Dump Angle 46 Degrees
• Breakout Force @ Ground level, pivot pin 3660#
• Reach w/ Attachment on Ground 70.5″
• Relief Valve Setting (loader control valve) psi
• Attachment Rollback Angle 35 Degrees
• Lift Cylinders (Bore x Rod) 2.2 x 1.2″
• Digging Depth Below Grade 1.8″
• Bucket Cylinders (Bore x Rod) 2.0 x 1.2″
• Overall Height in Carry Position 52.4″
• Bucket Width 62″  (Optional Bucket Cutting Edge available at additional cost)

BACKED BY A 6 YEAR POWERTRAIN AND ENGINE WARRANTY

Bumper-to-Bumper Warranty (Two Years or 1000 Hours Whichever Comes First) Plus a 6 Year Powertrain & Engine Warranty (72 Months or 2000 Hours Whichever Comes First).
