2023  TYM Tractors  T25

Call or Click for Quote

573.686.7299

Get in Touch

    Dealer Notes

    The TYM T25H Tractor/Loader has optimized height and a heavier structure in this highly durable Sub-Compact tractor.

    It’s equipped with one of the biggest lift capabilities among sub-compacts.

    Higher traveling speeds enable greater ground coverage, powered by an efficient engine that generates more output at lower rpms.

    The engine is also Tier 4 certified, producing minimized emissions and promoting more efficient fuel burn.

    With features to promote operator productivity like the brighter LED console and additional implement functionality with a third function valve, the T25 enables productivity and versatility to every job.

    Expect to tackle any outdoor challenge and gain a lifetime of benefits with this top-of-the-line TYM sub-compact.

    All the right features to get the job done!

    Complete a range of jobs with a TYM Series 1 sub-compact tractor. Achieve results faster with a powerful high-torque engine, control implements easily with a PTO switch and stay energized with an ergonomically design operator cabin.

    Features of the TYM T25H Tractor/Loader



    Superior operator amenities for greater productivity

    • Fully equipped with modern amenities to maximize operator comfort, this tractor is complete with a large cup holder, wireless smartphone charging dock, multiple USB ports to charge personal devices and a Bluetooth speaker. These features are designed to promote productivity, keeping drivers hydrated, connected and alert during every job.

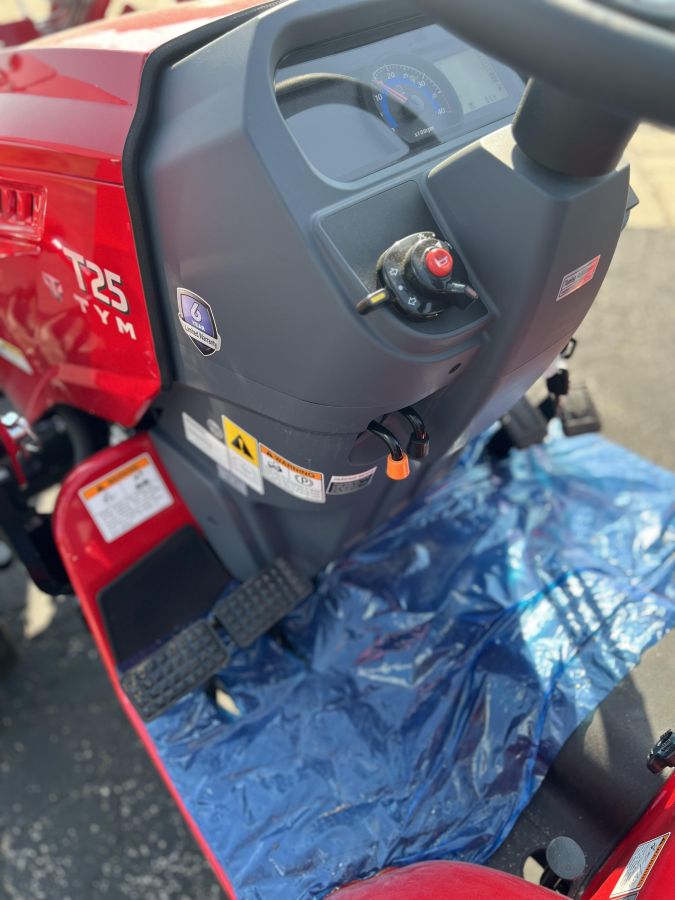

    Upgraded detailing to reduce operator effort

    • Packed with value-added features to enhance ease of operation, including a new fuel cap design to enhance grip and reduce manual effort and a brighter meta panel engineered to enhance operator awareness.



    High torque, water-cooled Yanmar diesel engine

    • The Japanese made Yanmar engine offers more torque with less revs compared to competitors in its class. Since it is water cooled, the engine warms up faster and stabilized temperature more effectively while the tractor is running. The engine is also Tier 4 certified, including for noise emission standards.



    Comfortable and secure seating for confident operation

    • In addition to a standard retractable seatbelt and cushioning, the seat of this tractor can hold over 400 lb (190 kg) and is equipped with a heavy duty mechanical suspension. While the seat provides comfort, the suspension acts as a buffer on uneven ground, keeping the operator secure in situations where there is risk of impact to the lower back. The seat can also be manually adjusted for weight, enabling operators to have the most optimal seating position.



    High capacity fuel tank to support time intensive work

    • The high capacity fuel tank allows drivers to take on jobs for longer periods without stopping for fuel. This is in addition to the engine, which promotes fuel-efficient operation and increases the time before a refuel.

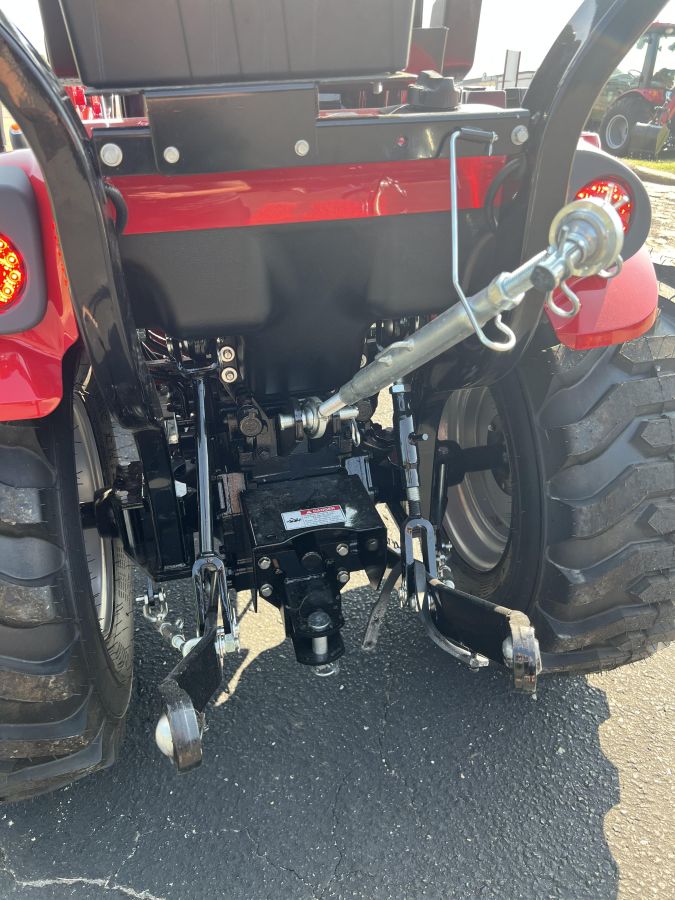

    3-point hitch with powerful lift capacity

    • The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joint. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging.

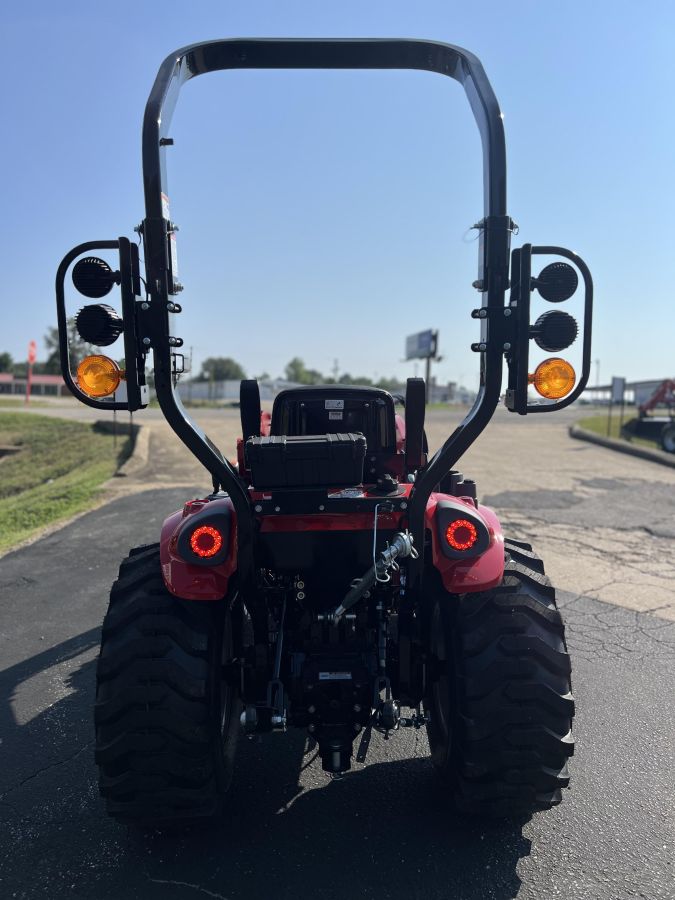

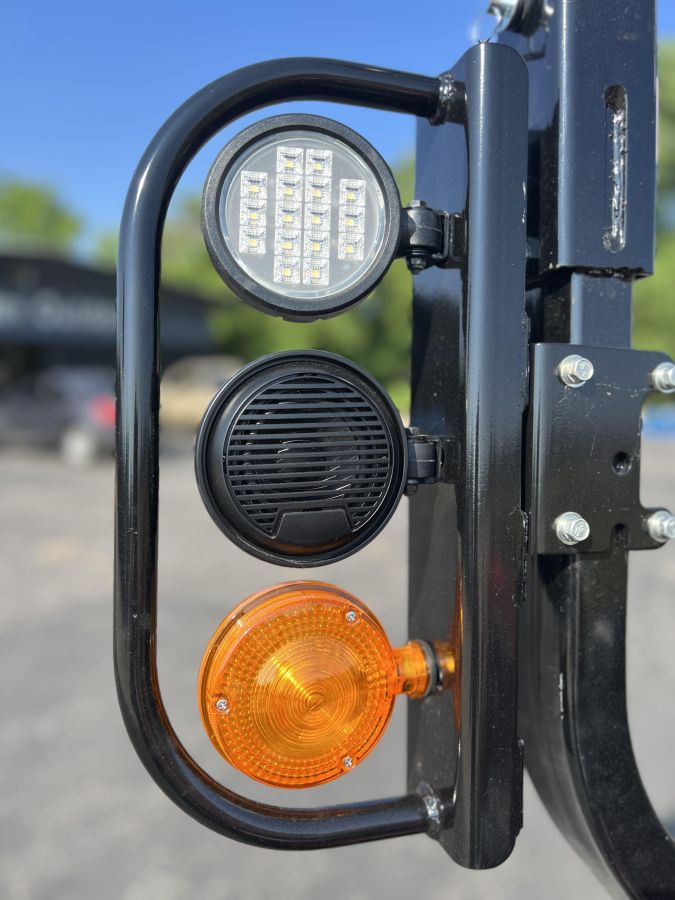

    Customizable rear accessories to meet a variety of needs

    • Attached to the right and left verticals on the foldable ROPS structure, this tractor features a modular system with three slot for lights, work lamps and speakers. Based on operator preference and working conditions, more speakers and lamps can be attached. This brings operators comfort and security in daylight or at night.



    3rd function hydraulic valve to enhance implement capabilities

    • Allowing for versatile implement handling, this tractor comes with ready with a 3rd function installation kit. It can maximize the use of a bucket implement with 4-in-1 functionality, including lifting, tilting, dumping and grappling.


    See what is the difference between the TYM  T264 and the TYM T25 Series 1, Sub-Compact Tractor



    TYM T25H Tractor/Loader Specs:


    General

    Drive System - 4 Wheel Drive

    Steering - Hydrostatic

    Clutch - N/A

    Brake - Wet Disc

    Gross Engine Power - 24.7 hp

    Engine

    Engine manufacturer - Yanmar 3TNV80F

    Type - Natural Aspiration

    Gross engine power - 24.7 hp | 17.8 kW

    PTO power - 18.2hp | 13.6 kW

    Rated engine speed - 3000 rpm

    Number of cylinders - 3

    Displacement - 77.3 cu. in.

    Air cleaner - Single Dry

    Alternator - 12V, 45A

    Fuel system - Indirect Injection

    Powertrain

    No. of speeds - Infinite 2 range

    Max. traveling speed - 13.7 mph

    Brakes - Wet Disc

    Steering - Hydrostatic

    Clutch - N/A

    Hydraulic System

    Pump type - Single Gear Pump

    Implement flow - 4.18 gpm

    Steering flow - 2.77 gpm

    Total flow - 6.95 gpm

    Category, 3-point hitch

    Hitch lift capacity - 1534 lb

    Hitch lift capacity at 24 inches behind link ends - 1102 lb

    Lift control type - Position

    No. of standard remote valves - Optional (1)



    PTO

    PTO type - Independent

    PTO control - Electric/Hydro

    PTO rear - 540 rpm



    Capacities

    Fuel tank - 6.6 gal

    Coolant - 3.8 qt

    Crankcase - 2.9 qt

    Transmission/Hydraulics system - 5.8 gal

    Front axle - 4.7 qt



    Standard Tires

    R3 Turf – Front - Turf Master 23×8.50-12 NHS TL 4PR

    R3 Turf – Rear - Multi-Trac CS 33×12.50-16.5 NHS TL 4PR

    R4 Industrial – Front - Trac Chief 23×8.50-14 NHS TL 4PR

    R4 Industrial – Rear - Trac Chief 14-17.5 NHS TL 6PR



    Dimensions & Weights

    Overall length with 3-point hitch - 107.8 in.

    Overall width - 52.8 in.

    Wheelbase - 61 in.

    Height to top of ROPS - 89.8 in.

    Min. ground clearance - 7.71 in.

    Minimum turn radius with brakes - 102.4 in.

    Mid. turn radius without brakes - 109.5 in.

    Weight with ROPS - 1881 lb

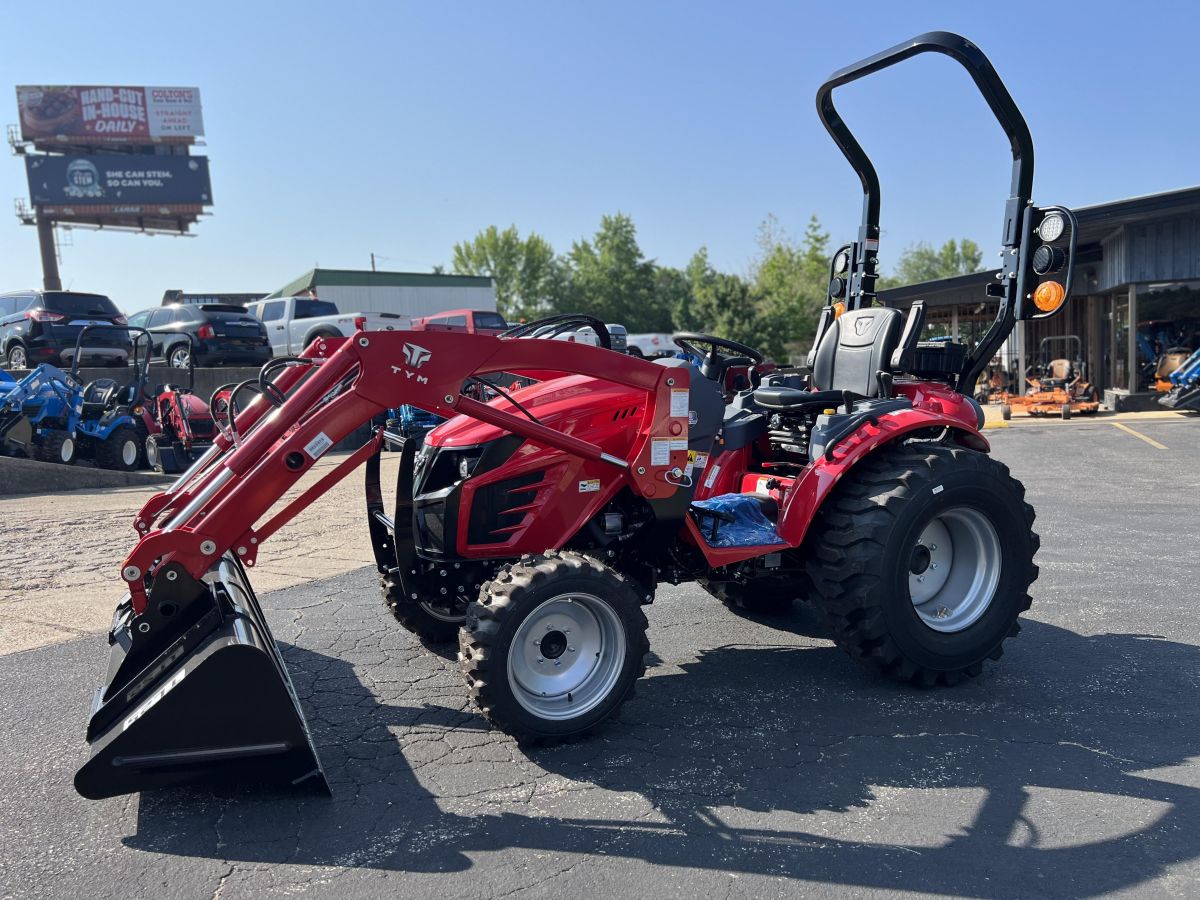

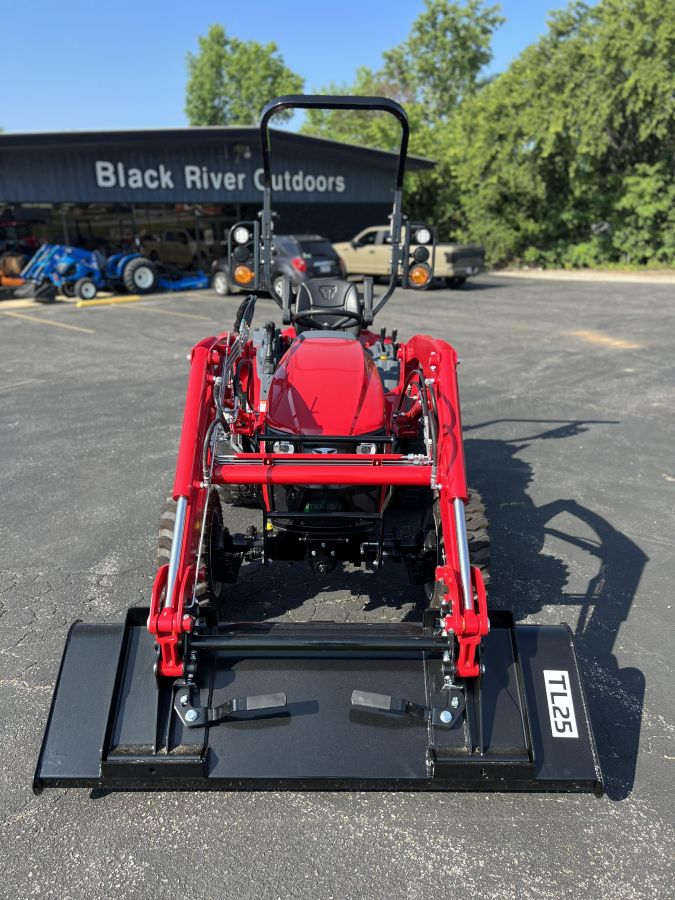

    TL25 Front End Loader

    • Quick Attach & Skid Steer Compatible

    • 1380# Capacity

    • 60″ Front-End Loader bucket

    • Lift height 87.2 in. / 2215 mm

    • Lift capacity 1380# / 626 kgf

    • Bucket capacity 6.7 cu. ft / 0.19 cu. m

    • Capacities & Reach

    • Lift height 87.2 in. | 2215 mm

    • Max. lift height under level bucket 81.3 in. | 2065 mm

    • Clearance with bucket dumped 65.3 in. | 1658 mm

    • Reach at maximum lift height 23.7 in. | 601 mm

    • Max. dump angle 50°

    • Reach with bucket on ground 57.7 in. | 1465 mm

    • Max. rollback angle 30°

    • Digging depth 4.0 in. | 102 mm

    • Lift capacity 1380# | 626 kgf

    • Breakout force at ground level, pivot pins 2059# | 934 kgf

    • Bucket rollback force at ground line 1596# | 724 kgf

    • Bucket capacity 6.7 cu. ft | 0.19 cu. m

    • Self leveling NA

    • Relief valve setting (Loader control valve) 2276 psi | 160 kg/sq. cm

    • Dimensions & Weights

    • Overall height in carry position 46.5 in. | 1180 mm

    • Depth of Attachment (to the back of the inner shell) 18.4 in. | 467 mm

    • Height of Attachment 19.1 in. | 484 mm

    • Length of Attachment (to pivot pin) 24.6 in. | 626 mm

    • Weight of boom & quick attach mechanism (1) 363.8# | 165 kg

    • Weight of mounting frame (2) 138.9 lb | 63 kg

    • Weight of bucket (3) 176.4# | 80 kg

    • Loader total weight (1+2+3) 680# | 308 kg

    • Lift cylinder .x. in. | x mm

    • Bucket cylinder .x. in. | x mm

    • Attachment used for speciation 59 in. | 1492 mm

    • Cycle Times

    • Boom raising time 4.1 sec

    • Boom lowering time 2.3 sec

    • Bucket rollback time 2.6 sec

    • Bucket dumping time 4.1 sec

    Upgrades for the TYM T25H Tractor
    Complement the capabilities of your TYM tractor with compatible options and accessories.

    Options:

    • Cabin

    • CAB25

    • Tire -R3 Turf Tires

    • F Turf Master 23×8.50-12 NHS TL 4PR, R Multi-Trac CS 33×12.50-16.5 NHS TL 4PR

    • Tire- R4 Industrial Tires

    • F Trac Chief 23×8.50-14 NHS TL 4PR, R Trac Chief 14-17.5 NHS TL 6PR

    • Accessories

    • Block heater

    • Mid-PTO kit

    • Auxiliary hydraulic kit

    • Front counterweights

    • ROPS-mounted Bluetooth speaker

    • ROPS-mounted light kit

    • TB65A Mechanical Thumb

    • BHPAD100 Street Pads

    • Rear wiper kit for cab model

    • Mulching kits


    Info

    Industry

    Agriculture

    Make

    TYM Tractors

    Model

    T25

    Trim

    Base

    Year

    2023

    Category

    Tractors

    Subcategory

    Tractors

    Condition

    New
